Monogear

Synthetic gear oil

Available formats :

Safety Data Sheet
Technical data sheet Safety data sheet grade 150 Safety data sheet grade 220 Safety data sheet grade 320 Safety data sheet grade 460 Safety data sheet grade 680

Compatibility

MONOGEAR is compatible with elastomeric seals.

Instructions for use

Follow the recommendations of the manufacturer of the equipment part to be lubricated.

Notes

For best results, it is highly recommended to use PROLAB's DE-25 decontaminant before applying a new lubricant. (Refer to the DE-25 product data sheet)

Technical Data

Warning

MONOGEAR may be incompatible with yellow metals (brass, copper, etc.), depending on operating temperatures. Do not hesitate to consult your PROLAB representative.

Available sizes

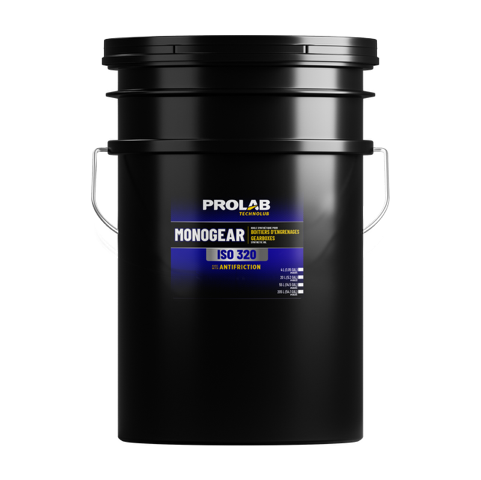

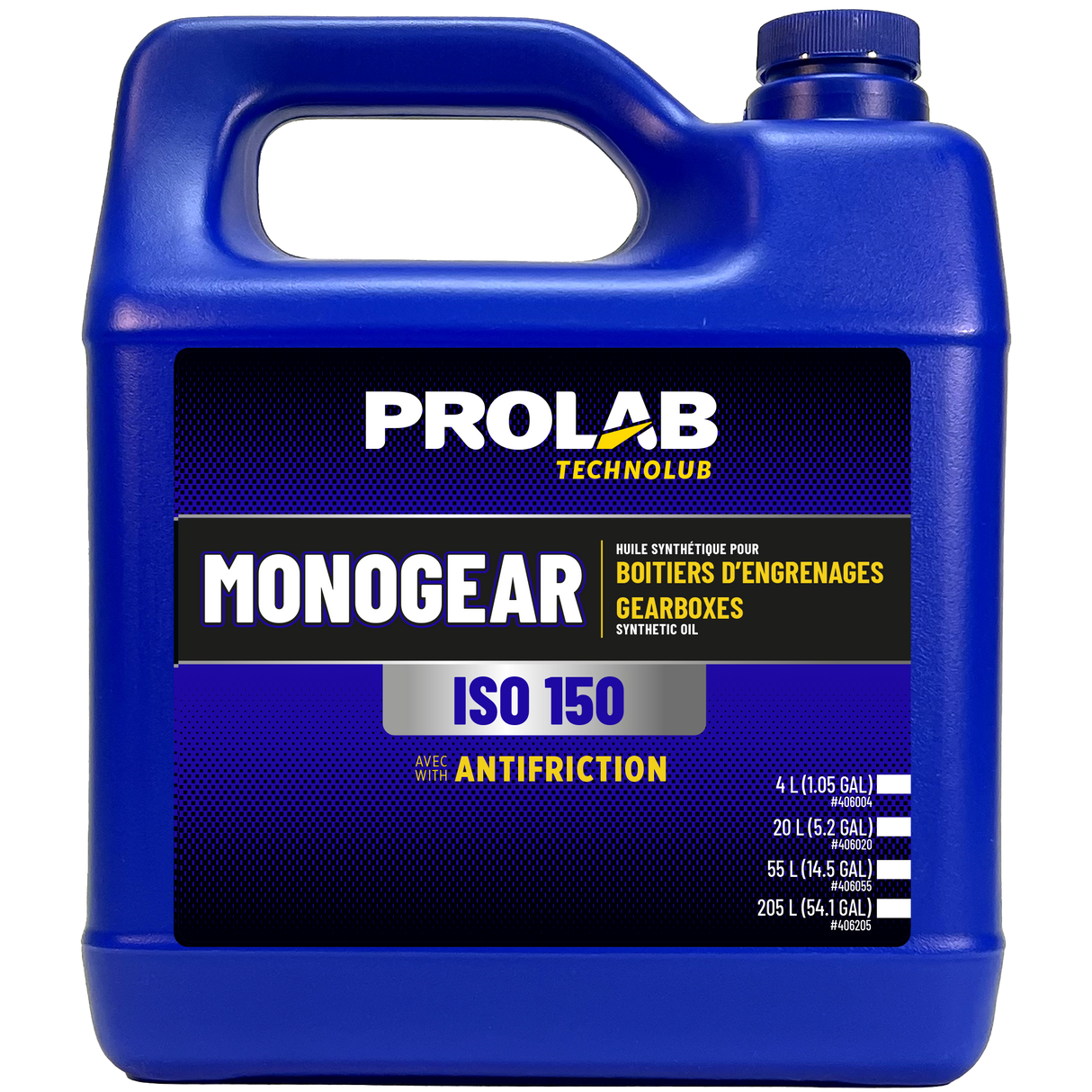

4 L, 20 L, 55 L, 205 L

Product number(s)

#406: MONOGEAR-150 #536: MONOGEAR-220 #535: MONOGEAR-320 #534: MONOGEAR-460 #533: MONOGEAR-680

Technical specifications
Characteristics ASTM TEST Typical values
Monogear 150 		Typical values
Monogear 220 		Typical values
Monogear 320
Flash point D92 226°C 226°C   224°C
Fire point D92 238°C  232°C  246°C
Pour point D97 -30°C  -22°C  -13°C
Density at 15°C D4052 0,89 g/cm3  0,89 g/cm3 0,89 g/cm3
Viscosity at 40°C D445 146cSt  222 cSt  334 cSt
Viscosity at 100°C D445 16 cSt  21 cSt 28 cSt
Viscosity index D2270 110  110  110

Rust prevention characteristics
(A) Distilled water
(B) Sea water

 D665



Pass

Pass



Pass

Pass



Pass

Pass

Foaming tendency

- Sequence #1

- Sequence #2

- Sequence #3

 D892



0/0 ml

10/0 ml

0/0 ml



10/0 ml

0/0 ml

10/0 ml



20/0 ml

0/0 ml

10/0 ml

Demulsibility characteristics
- Water in oil
- Free water
- Emulsion

 D2711B



0.6 %

83 ml

0 ml



0.8 %

86 ml

trace



1.2 %

84 ml

0 ml
Dielectric constant D877 32 Kv n.d.  n.d.
4-ball wear D4172 0.35 mm  0.32 mm  0.29 mm

4-ball extreme pressure

- Load index

- Weld load

 D2783



74

400 kg



 80

400 kg



80

400 kg

Description

MONOGEAR is a synthetic EP gear oil whose unique formula, based on PAO and PROLAB's antifriction treatment, provides exceptional properties that allow it to outperform similar products.

Characteristics and benefits

MONOGEAR synthetic gear oil has an innovative formula featuring antifriction treatment and high-quality adhesive polymers, providing increased longevity and unparalleled reliability under heavy loads and extremely severe conditions.

MONOGEAR protects gears against wear caused by friction by coating the metallic surfaces of gears, bearings, and the casing with a lubricating film. This ensures full power transmission, smooth operation, and high efficiency at startup, while the adhesive polymers accelerate the lubricant's progression through the gears.

MONOGEAR's PAO-based synthetic formulation provides superior anti-foaming properties and offers maximum protection against degradation and corrosion. It is available in 5 ISO grades: 150, 220, 320, 460, and 680.

Standards

The MONOGEAR series meets and exceeds the following standards:

- SAE J2360
- MIL-PRF-2105E
- API MT-1
- API GL-5
- Mack GO-J
- Scania STO 1:0
- ZF TE-ML 05A, 07A, 16B/C/D, 17B, 19B
- Arvin Meritor 0-76-A/B/D
- DAF (where GL-5 axle lubricants are recommended for use)
- IVECO (WHERE MIL-PRF-2105E AXLE LUBRICANTS ARE RECOMMENDED FOR USE)
- Renault (where GL-5 or MIL-PRF-2105E axle lubricants are recommended for use)
- MAN 342 M-2

Types of applications

Use MONOGEAR in all types of heavily loaded gearboxes.
