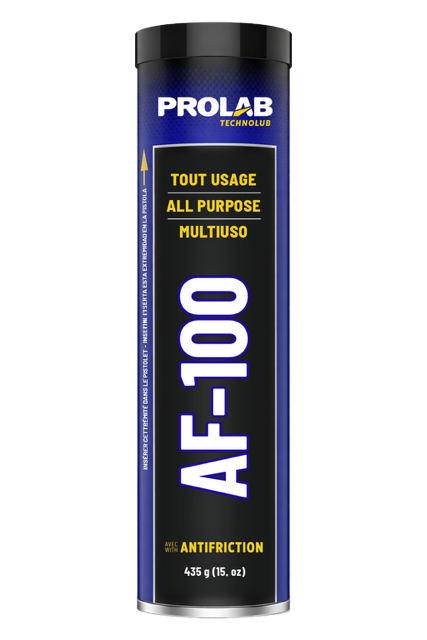

AF-100

All-purpose industrial grease

Available formats :

Safety Data Sheet
Technical data sheet Safety data sheet af-100-2 Safety data sheet af-100-1 Safety data sheet af-100-0

Instructions for use

Use the AF-100, making sure to always follow the equipment manufacturer's recommendations.

Technical Data

Warning

When changing greases, make sure to check the compatibility of the greases in question (consult the PROLAB grease compatibility chart).

Available formats

Grade #2: 435 g, 17 kg, 55 kg, 180 kg Grade #1: 435 g, 17 kg, 55 kg, 180 kg Grade #0: 415 g, 17 kg, 55 kg, 180 kg

Product number(s)

#299: AF-100-0 #298: AF-100-1 #297: AF-100-2

Technical specifications
Characteristics ASTM Test Typical Values
AF-100-2 		Typical Values
AF-100-1 		Typical Values
AF-100-0
Appearance   Brown Brown Red
N.L.G.I. Grade   2 1 0
Viscosity at 40°C D445 74 cSt 37 cSt 36.9 cSt
Viscosity at 100°C D445 9.3 cSt 8.4 cSt 6.1 cSt
Viscosity Index D2270 101 106 111
Drop Point D2265 318°C 300°C 280°C
Oil Separation at 25°C D1742 0.2% 0.2%  0.2%
Penetration 60 strokes D217 280 (1/10mm) 325 (1/10mm)  370
(1/10mm)
Shear Stability 100,000 strokes D217 2.3% 2.1%  2.0%
Shear Stability 10,000 strokes
(50/50 with water)		 D217 7.9% 7.5%  8.5%
Roll Stability D1831 1% max. 3% max. 3.5%  max.
Bearing Leakage Tendency D4290 6 SI n.d. n.d.
Oxidation Resistance 1000h D942 9 psi 9 psi 10 psi
Bearing Life D3527 100 hrs 100 hrs.  n.d.
4-Ball Wear
(75°C, 40 kg, 1200 rpm, 1h)		 D2266 0.38 mm 0.40 mm  0.42 mm
Load Index D2596 62 kg 62 kg  55 kg
Weld Load D2596 500 kg 500 kg  400 kg
Timken Load D2509 29.5 kg 27.2 kg  25 kg
Rust Prevention D1743 Pass Pass  Pass
Water Washout at 79°C D1264 3.5% 3.5%  8.0%
Copper Strip Corrosion D130 n.d. 1b  1b
Torque at -40°C D4693 8.0 Nm 7.0 Nm  5.0 Nm
Salt Spray Corrosion
(1 mil d.f.t.)		 B117 >300 hrs. >300 hrs.  >300 hrs.
Oil Separation
(100°C, 30 hrs.)		 D6184 0.07% n.d. n.d.

Pumpability

23°C (73°F)

-18°C (0°F)

-23°C (-10°F)

-29°C (-20°F)

-34°C (-30°F)





n.d.
14.9 gr/min
7 gr/min
2.2 gr/min
1 gr/min



n.d.

30.4 gr/min

17.5 gr/min

9.2 gr/min

2.6 gr/min



n.d.

56.5 gr3min

29 gr/min

8.6 gr/min

3 gr/min

Description

AF-100 with ANTIFRICTION TREATMENT is a superior multi-purpose grease that outperforms standard greases of the same viscosity made of lithium, aluminum or polyurea.

Features and benefits

AF-100 has a unique formulation combining the following elements:
   - Overbased calcium sulfonate complex;
   - Premium mineral base oil;
   - PROLAB's ANTIFRICTION TREATMENT.

This exclusive PROLAB formula makes AF-100 an exceptionally performing grease: it reduces friction, protects against rust, corrosion and oxidation, offers exceptional resistance to load, wear and water, as well as excellent mechanical stability.

AF-100's superior properties, unaffected by temperature variations, help extend relubrication intervals and save on maintenance costs. Available in three N.L.G.I grades, it can be used in all seasons.

Types of applications

AF-100 is essential in every business, from the smallest to the largest, regardless of its sector of activity. It is particularly effective in bearings with a maximum operating speed of 3600 rpm.
